About MIDILLI MIDI Router

Meet the newest member of the MIDILLI products: MIDILLI MIDI Router. It’s among us after our successful Kickstarter campaign.

Get Your Own Now

The MIDILLI MIDI Router lets you route messages exactly where you want and in any direction you want — between USB, Bluetooth, DIN and TRS (Type A & B) — with per-interface, per-message type, anc channel filtering that gives you total creative freedom. Compact, powerful, and ultra-efficient, it’s designed for both stage and studio. Only 106 × 55 × 33 mm (4.17 × 2.17 × 1.3 inches) and 115 grams (4.06 oz).

Connect every cable you need — USB, DIN, TRS… and Bluetooth, of course (invisible, just like it should be).

MIDILLI MIDI Router is a standalone, plug-and-play and versatile tool that works across many platforms and has various connection options for MIDI routing. It’s particularly useful for musicians or producers who need a flexible setup for connecting multiple MIDI devices.

Features 6 physical MIDI ports (1 In, 4 Out), USB and Bluetooth MIDI In/Out, and 2 MIDI Thru outputs. You can selectively disable routing between interfaces, where applicable.

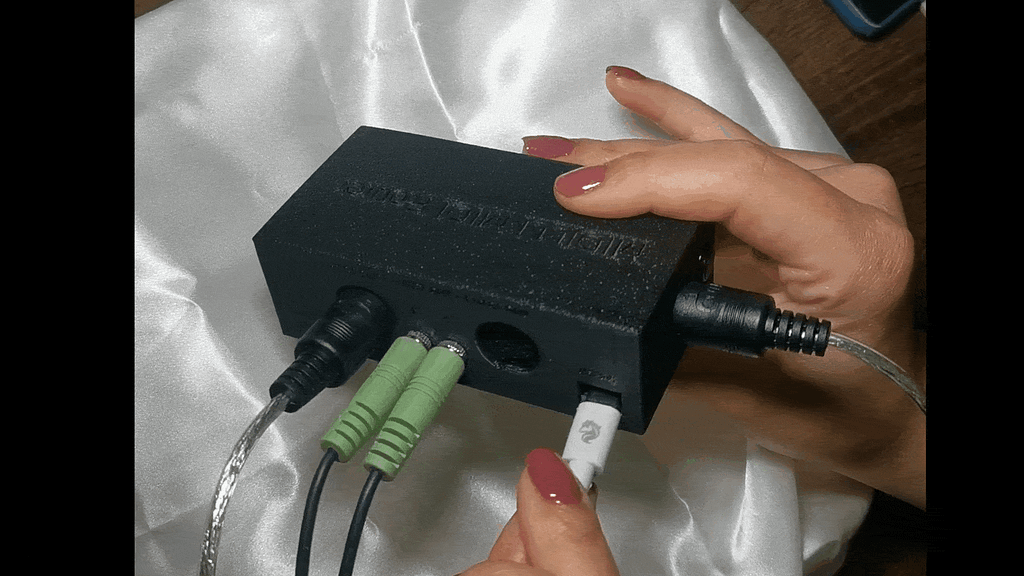

Plug-and-play – No drivers needed!

Selective MIDI Routing

Introducing our advanced Selective MIDI Routing—a game-changer designed with musicians, producers, and live performers in mind. With MIDILLI, you enjoy a versatile suite of interfaces including USB In/Out, MIDI In/Out, and Bluetooth In/Out, all seamlessly integrated into one powerful device.

Configurator: MIDI Router. Check the boxes to enable forwarding between two different interfaces. Select column titles to filter specific messages or channels.

More Than a Simple MIDI Router

Beyond MIDI routing capabilities, MIDILLI MIDI Router also introduces powerful message filtering.

Configurator: Filter specific MIDI message types and channels by enabling or disabling them for certain outputs.
mLink is a private network for MIDILLI Devices.

MIDILLI Link – mLink is a wireless MIDI bridge that connects multiple MIDILLI devices together — no drivers, no configuration headaches. It turns your existing gear into a low-latency, synchronized ecosystem, where communication is seamless across:

  • ✅ Multiple computers
  • ✅ MIDI controllers
  • ✅ Footswitches, synths, and desktop units

Up to 15 MIDILLI devices per group, and you can create up to 11 network groups. And best of all: it’s self-healing. If a connection drops, mLink re-establishes it automatically — silently and instantly.

✨ Key Features

Multiple MIDI Interfaces:

  • 4x MIDI Out (2x MIDI DIN-5, 1x TRS 3.5mm Type-A, 1x TRS 3.5mm Type-B) 🎹
  • 1x MIDI In DIN 5 🎶
  • 2x MIDI Thru DIN 5 🔄
  • 1x USB MIDI (In and Out) 💻
  • 1x Bluetooth MIDI (In and Out) 📱

MIDI Routing:

  • Forward incoming MIDI messages between MIDI Out, USB MIDI, and Bluetooth MIDI
  • Enable or disable interfaces for forwarding
  • Select which message types (e.g., Note, Clock, SysEx) to forward.

Plug & Play:

  • No drivers required! Works out of the box with macOS, Windows, Linux, Android, and iOS*
  • Powered via USB-C with low power consumption.
  • Customizable with different colors and custom device name!

🔧 Specifications

⚙️ Physical Connections

  • 1× MIDI In (DIN-5)
  • 2× MIDI Out (DIN-5)
  • 1× TRS 3.5mm MIDI Out – Type A
  • 1× TRS 3.5mm MIDI Out – Type B
  • 2× MIDI Thru (DIN-5)
  • 1× USB MIDI (via USB-C)
  • 1× Bluetooth MIDI

📦 Dimensions

  • Size: 106 × 55 × 33 mm (4.17 × 2.17 × 1.3 inches) (Width × Depth × Height)
  • Weight: 115 grams (4.06 oz)

🔌 Power

  • 5V, USB-C Powered
  • Current: 95 mA (with Bluetooth enabled)
  • Current: 75 mA (with Bluetooth off)
Buy Now

See the MIDI Router in Action:

MIDILLI MIDI Hub Trailer
