Not too long ago, we made an announcement on the upcoming feature. And today, we have it! With even more advanced features!
Here is what’s new in this firmware version:
Send static and dynamic SysEx (System Exclusive) messages
This was one of the most requested features from users, so we couldn’t wait to implement it. And of course, it’s available for everyone!
Static SysEx means a fixed message is sent when you change a knob or fader value, or use a button in any mode.
Example: 120 1 2 3 4
Dynamic SysEx means the current value of the control element (knob, fader, or button) is included in the message. You can place the values anywhere by using M for Most Significant Bit (MSB) and L for Least Significant Bit (LSB).
Example: 120 M L 22 34 127
You can also enter values in hexadecimal format if you prefer, or in combination. Conversion between decimal and hex is automatic, and you can toggle between them using the (dec)/(hex) button.

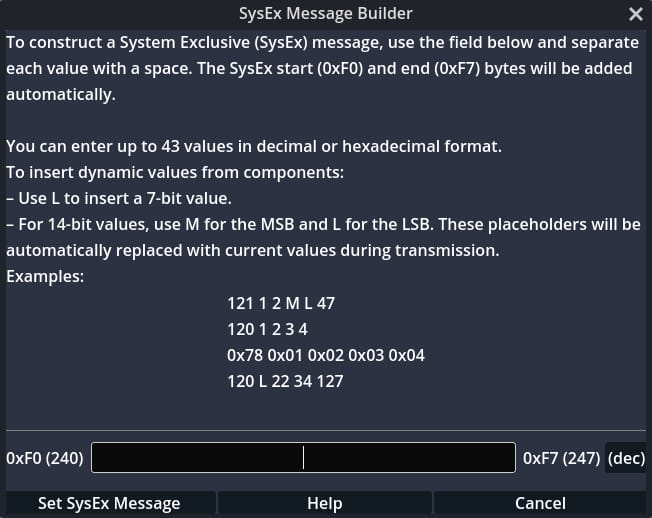

In the Configurator, set the Type of any control element to SysEx and start building it!
Make sure to update your Configurator software to access the new SysEx options.
For more details, please check the manual.
Filter messages by MIDI channel
MIDILLI devices feature a powerful MIDI Routing Matrix filter that lets you precisely control which message types and channels are forwarded to each output. This advanced filtering capability is included in all our MIDI devices, giving you full flexibility over your MIDI signal flow.
Now, you can also select which MIDI channels to forward for each output type, allowing precise control over your MIDI routing.
To learn how to use it, check the manual.
