Description
Meet the smartest way to take control of your MIDI world.

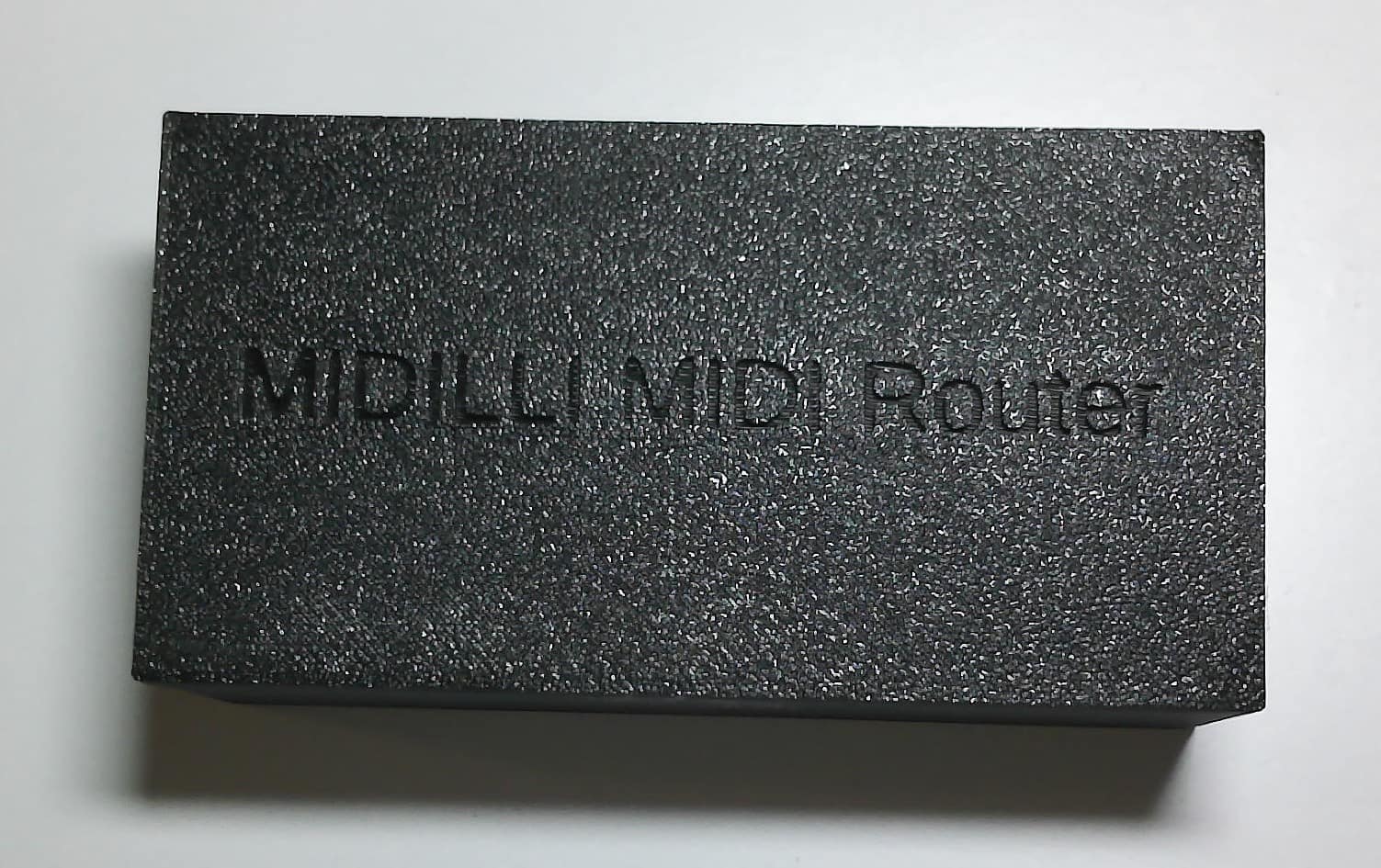

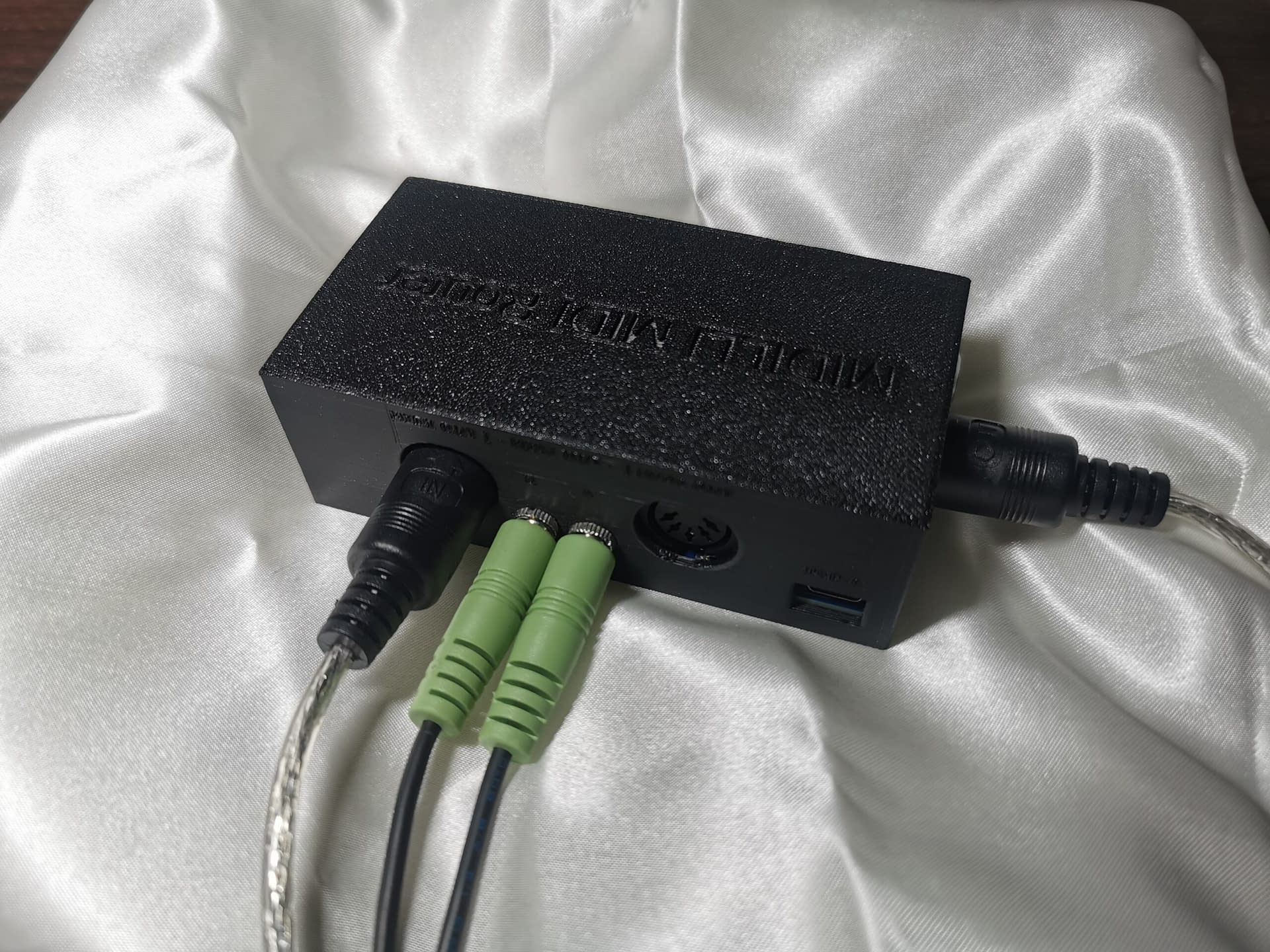

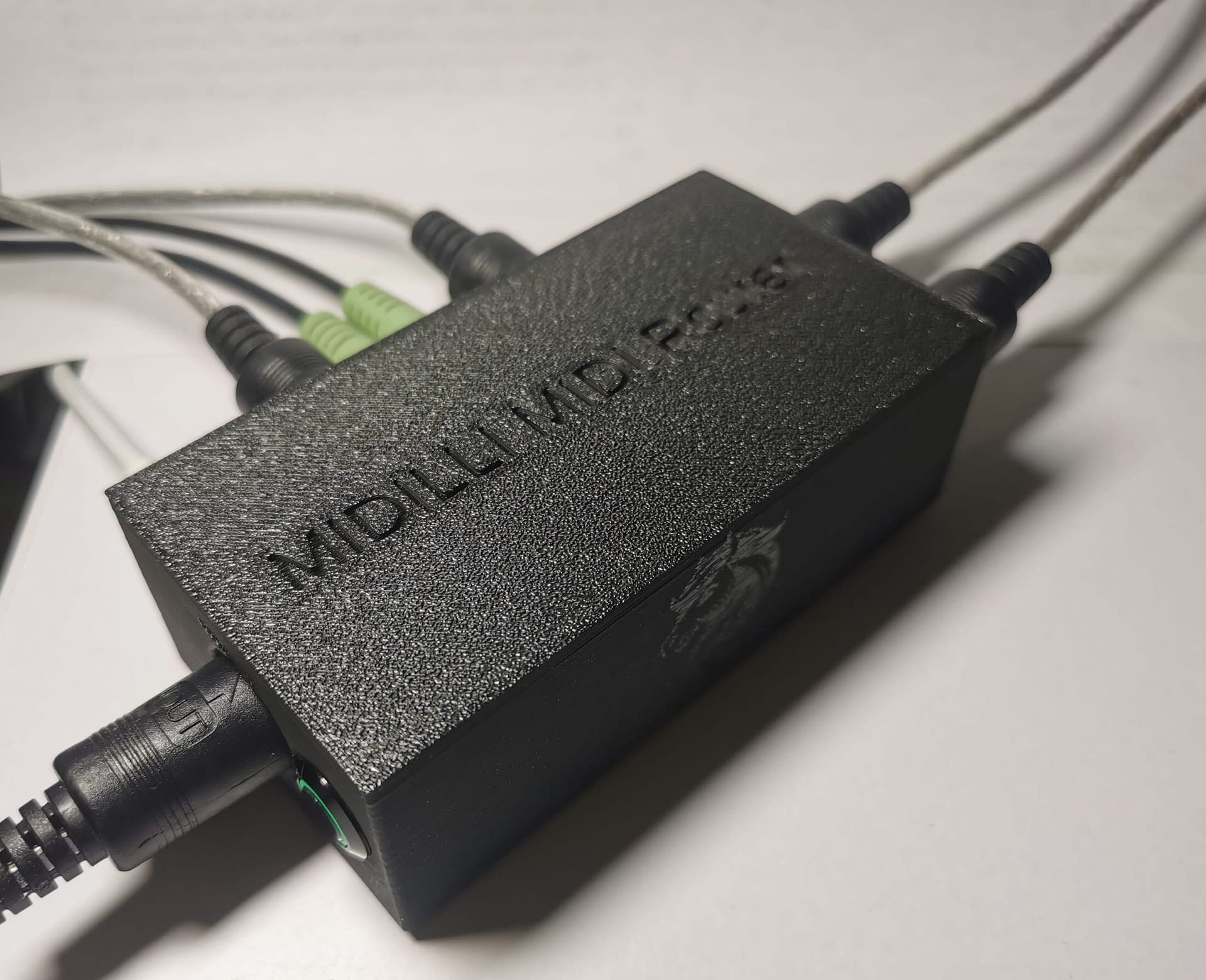

The MIDILLI MIDI Router lets you route messages exactly where you want and in any direction you want — between USB, Bluetooth, DIN and TRS (Type A & B) — with per-interface, per-message type, and per channel filtering that gives you total creative freedom.
Compact, powerful, and ultra-efficient, it’s designed for both stage and studio. Only 106 × 55 × 33 mm (4.17 × 2.17 × 1.3 inches) and 115 grams (4.06 oz).
Say goodbye to messy cables and rigid signal chains — and hello to the most flexible MIDI brain you’ve ever owned.
Every feature is a response to your needs: seamless integration across Bluetooth, USB, DIN, and TRS interfaces, a smart matrix routing system, and message filtering to ensure that every note, beat, and control signal arrives just as you intend.

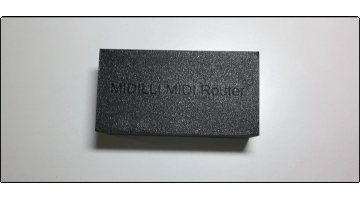

Check the trailer below (or click here to watch):
Key Features
Multiple MIDI Interfaces:
- 4x MIDI Out (2x MIDI DIN-5, 1x TRS 3.5mm Type-A, 1x TRS 3.5mm Type-B) 🎹
- 1x MIDI In DIN 5 🎶
- 2x MIDI Thru DIN 5 🔄
- 1x USB MIDI (In and Out) 💻
- 1x Bluetooth MIDI (In and Out – BLE 5.0) 📱
- mLink Support: Seamless wireless pairing with other MIDILLI devices, expanding your MIDI ecosystem with zero hassle.

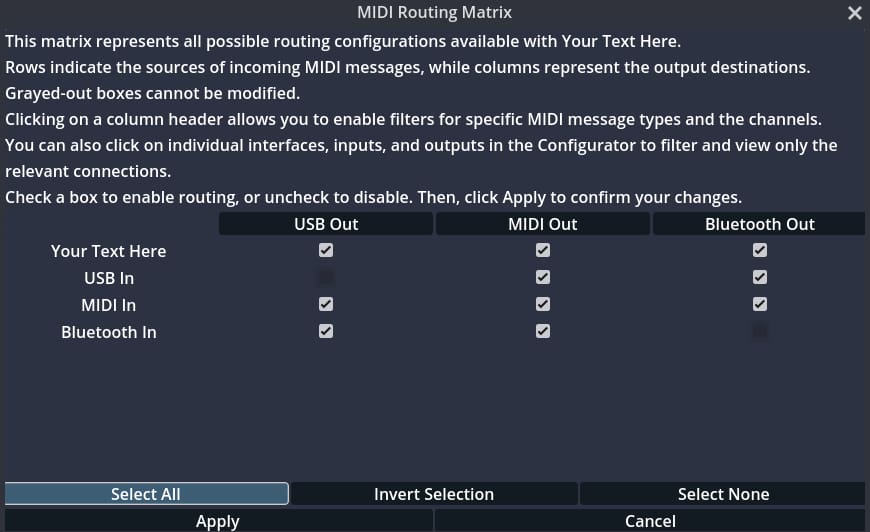

MIDI Routing:
- Forward incoming MIDI messages between MIDI Out, USB MIDI, and Bluetooth MIDI
- Enable or disable interfaces for forwarding
- Select which message types (e.g., Note, Clock, SysEx) to forward
- Select which channels to forward.
Plug & Play:
- No drivers required! Works out of the box with macOS, Windows, Linux, Android, and iOS*
- Powered via USB-C with low power consumption.
*iOS: Bluetooth MIDI or with devices with USB-C connector.

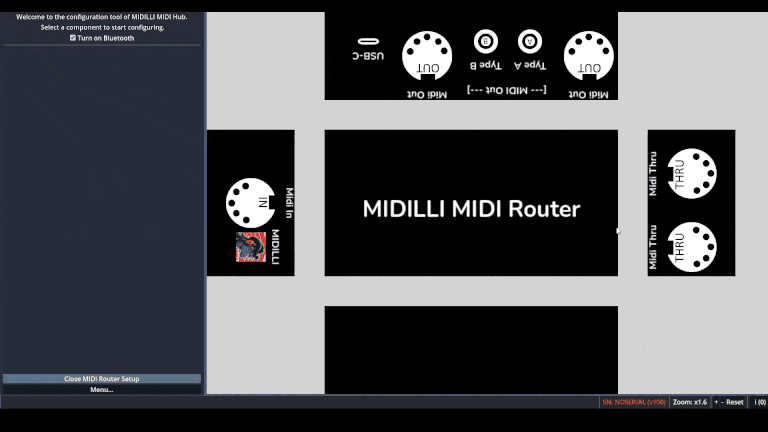

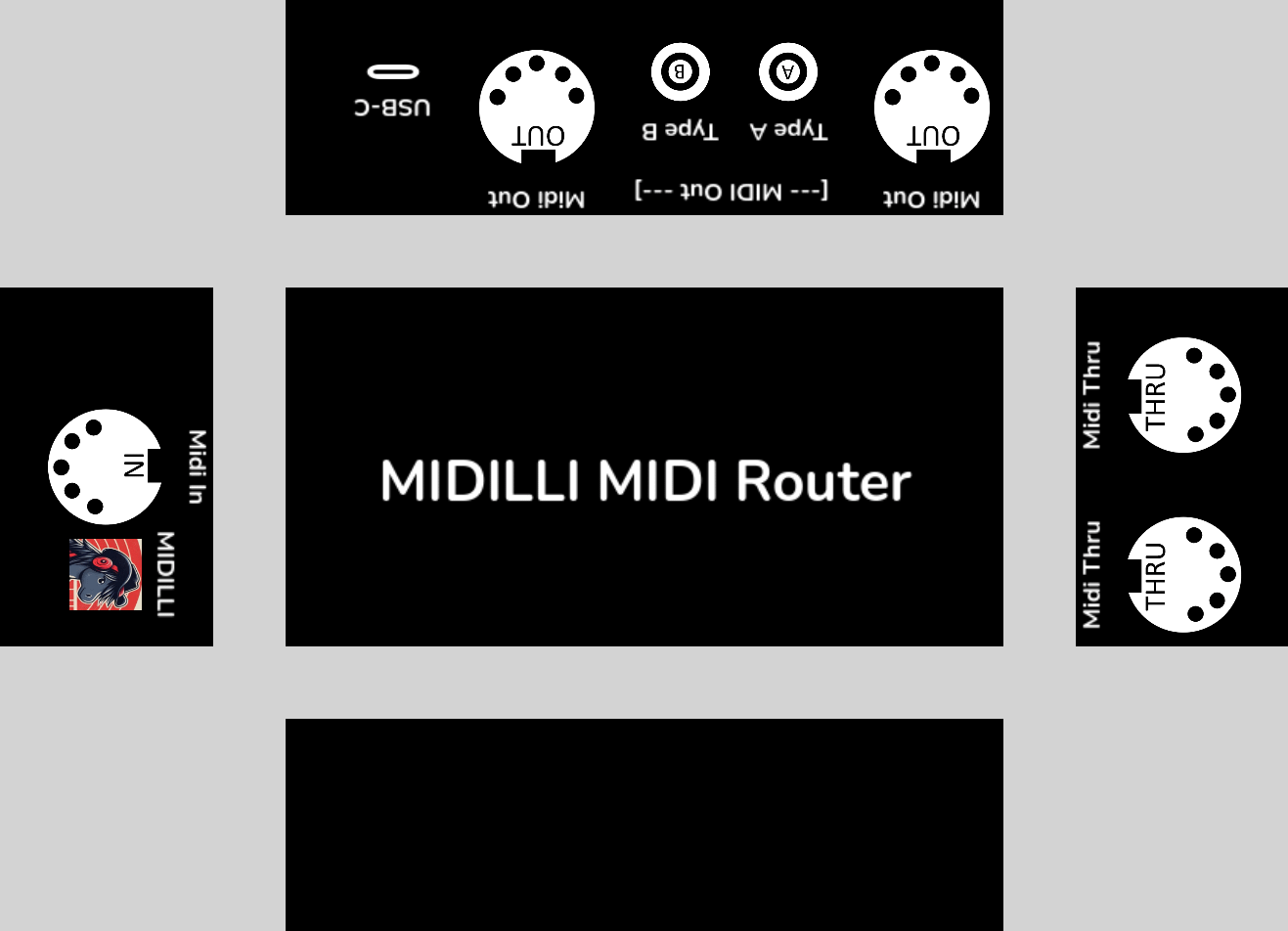

Configurator Software
Only needed when you need to change settings. Available for Windows, macOS, and Linux. Get Configurator here.
Specifications

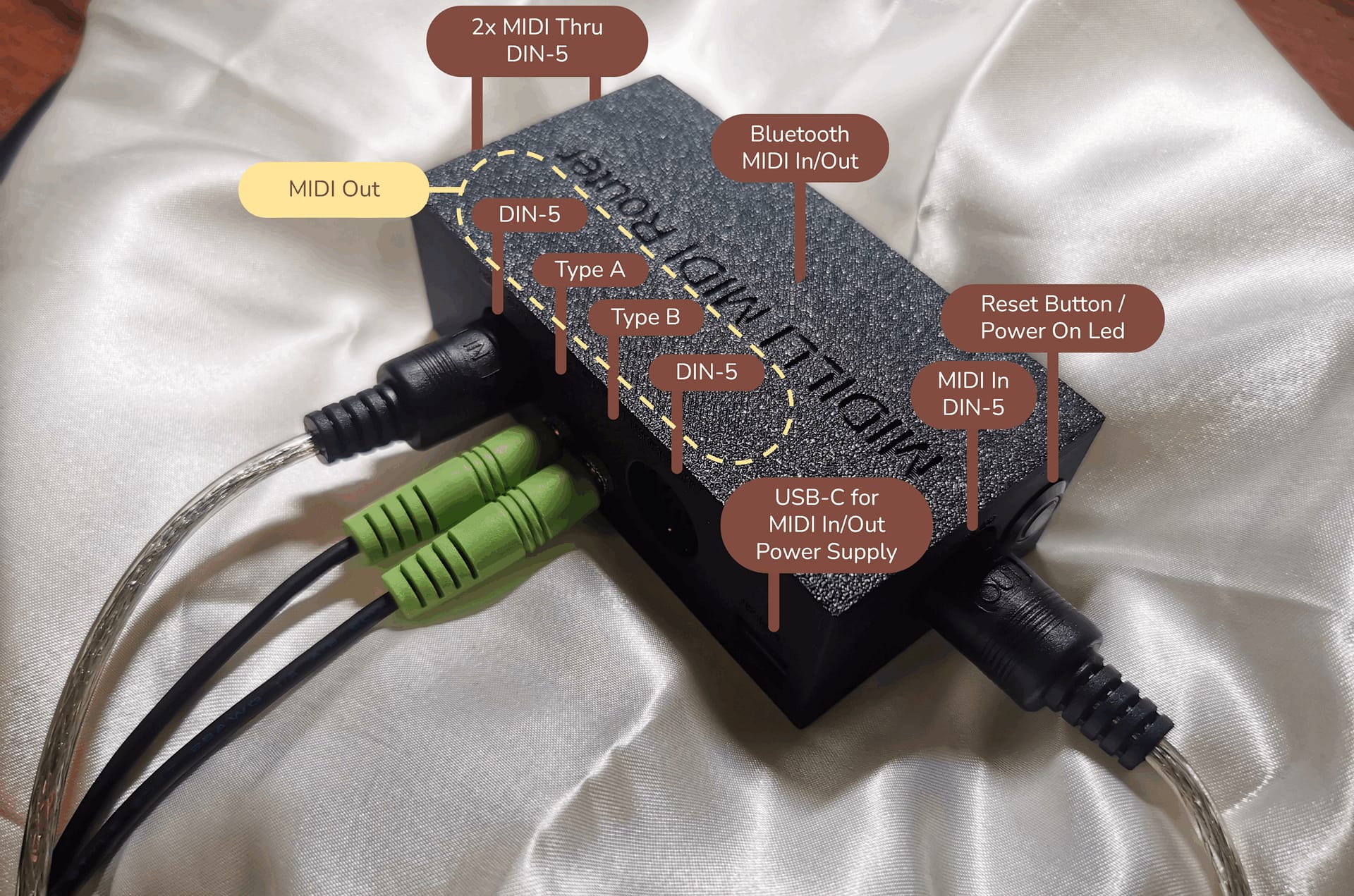

⚙️ Physical Connections
- 1× MIDI In (DIN-5)
- 2× MIDI Out (DIN-5)
- 1× TRS 3.5mm MIDI Out – Type A
- 1× TRS 3.5mm MIDI Out – Type B
- 2× MIDI Thru (DIN-5)
- 1× USB MIDI (via USB-C)
- 1× Bluetooth MIDI (BLE 5.0)
📦 Dimensions
- Size: 106 × 55 × 33 mm (4.17 × 2.17 × 1.3 inches) (Width × Depth × Height)
- Weight: 115 grams (4.06 oz)
🔌 Power
- 5V, USB-C Powered
- Current: 95 mA (with Bluetooth enabled)
- Current: 75 mA (with Bluetooth off)
Optional Upgrades

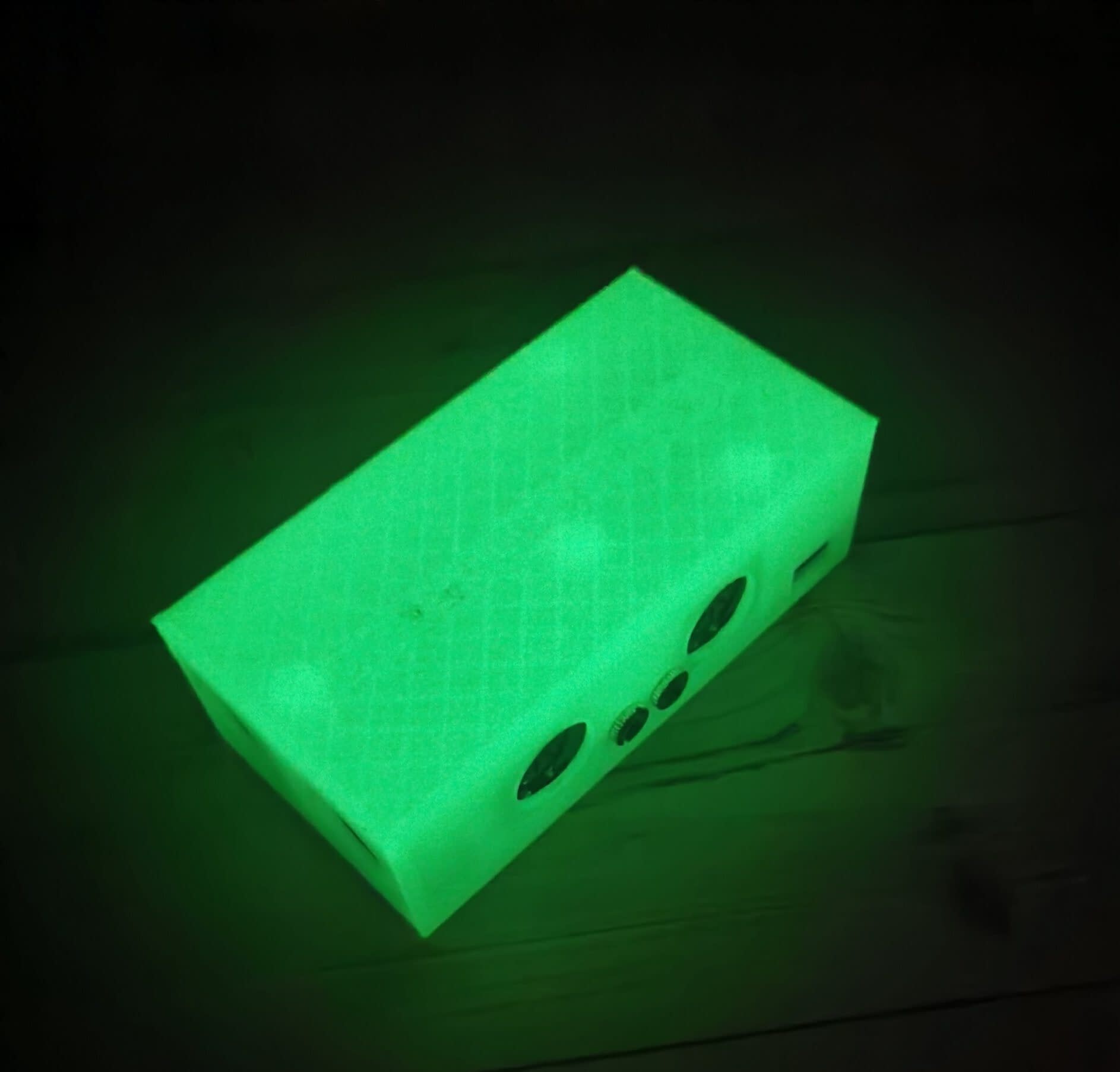

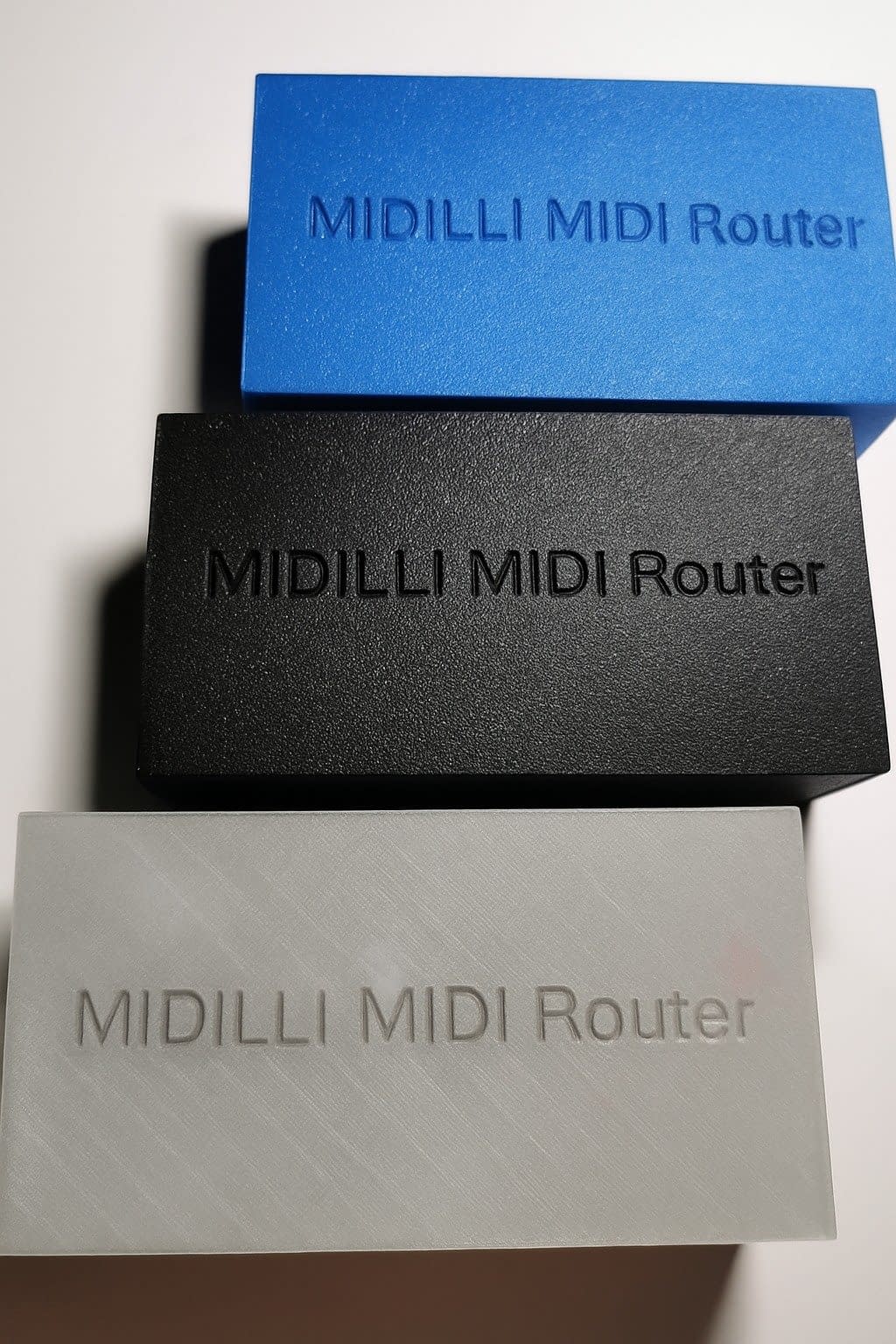

- Choose Your Own Color option to match your personal style (you will be contacted for details)

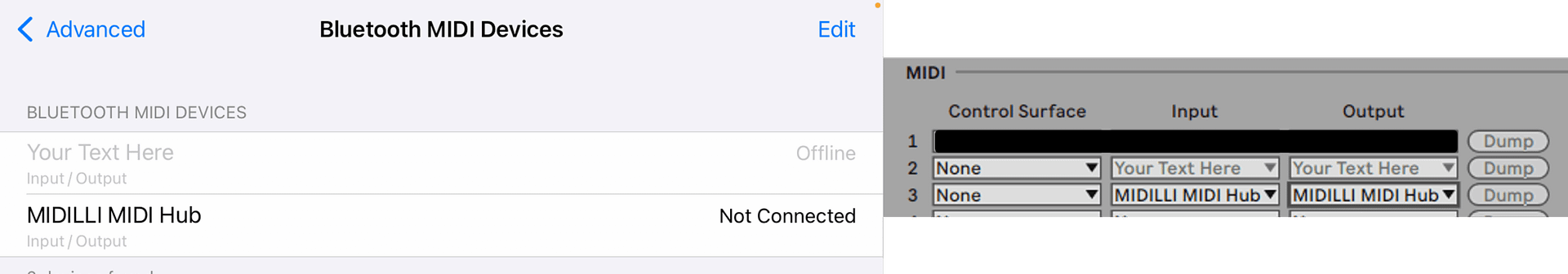

- Custom Device Name so your hub carries your unique identity (you will be contacted for details)
